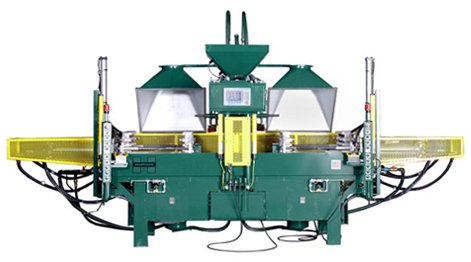

Shell Core Machines-Dual Station

Core & Mold Making Videos

Shell Core Machines - Dual Station Productivity & Utilization

  • Increases Operator Output: One Operator runs 2 jobs at the same time.
  • Semi-Automatic Operation: the machine drives the core making process for predictable results.
  • Quick Change Core Box Mounting System: available, change boxes in just a few minutes instead of the better part of an hour.
  • Production During Heat-Up: run full production on one station while the other station’s box is heating up.
  • Advanced Temperature Control & Heat Transfer: helps to make the cure cycle more efficient and heats boxes up much faster.
  • High Speed Operation: high efficiency pneumatics enable faster Dual Station machine times than most other single station machines.
  • Only Shell Machines Capable of Higher Productivity than Cold Box Machines: because of the nature of our Dual Station System and the Hot Process our machines have a much shorter machine time part of the cycle.

Shell Core Machines - Dual Station Unparalleled Flexibility
Dual Station Multiple Operational Modes suit the constantly changing demands of most Foundries by running at the same time:

  • (2) Short Jobs
  • (2) High Volume Jobs
  • (2) Customers at Same Time.
  • Both Parts of a (2) pc. Core
  • Three Piece Boxes capability
  • Large Core on (1) Station, Small Core(s) on Other Station
  • Automatically Runs Multiple Short Cycles on (1) Station to (1) Long Cycle on Other Station
  • Long Run on (1) Station & Jobbing Work on Other Station
  • Hollow Core(s) on (1) Station & Solid on the Other Station, or Same on Both Stations
  • Small Box on (1) Station & Large on the Other Station, or Same on Both Stations
  • Reduced Energy & Emissions
  • Superior Productivity, Utilization, and Flexibility: equal fewer Harrison machines are required to meet capacity demand.
  • Fewer Machines equal less core making energy used.
  • Lower Energy Usage equals less related energy consumption emissions.
  • Lower Emissions equals less cost for regulations compliance and lower remediation expenses.
  • Higher Productivity & Fewer Machines means more cores per energy & labor unit equals lower operating cost.
  • Lower COST-per-CORE equals a quick payback & higher margins equal an increased Competitive Advantage.

Shell Core Machines - Dual Station Specs:

ModelMax Box CapacityBlow Cap.
1016-DS10”H x 16”W x 6”D20lbs / 5L
1616-DS16”H x 16”W x 10”D35lbs / 9L
1818-DS18”H x 18”W x 10”D40lbs / 10L
1824-DS18”H x 24”W x 10”D57lbs / 15L
2424-DS24”H x 24”W x 10”D70lbs / 20L
2430-DS24”H x 30”W x 12”D95lbs / 25L
